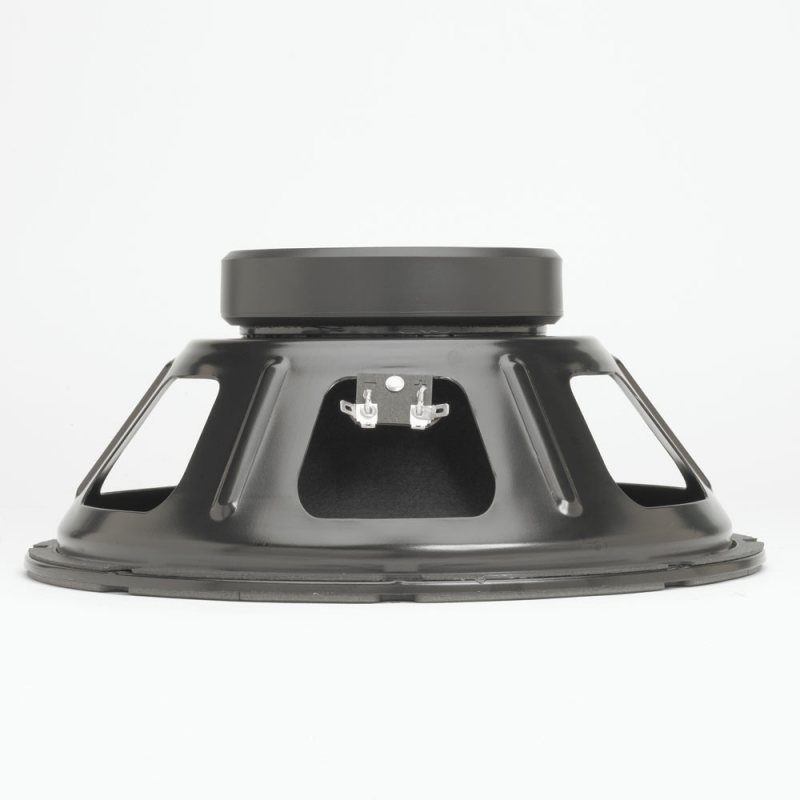

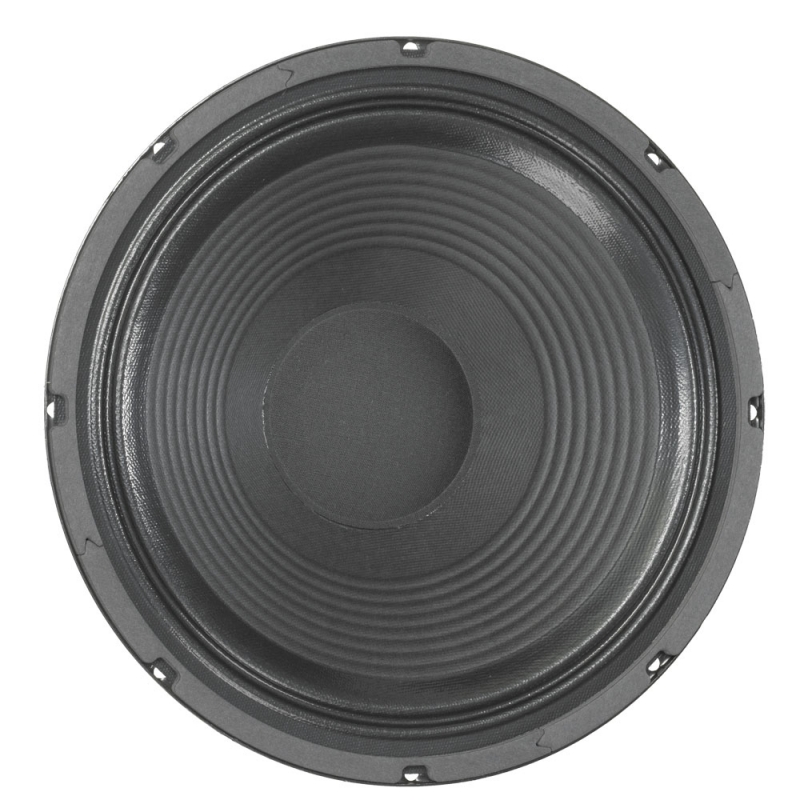

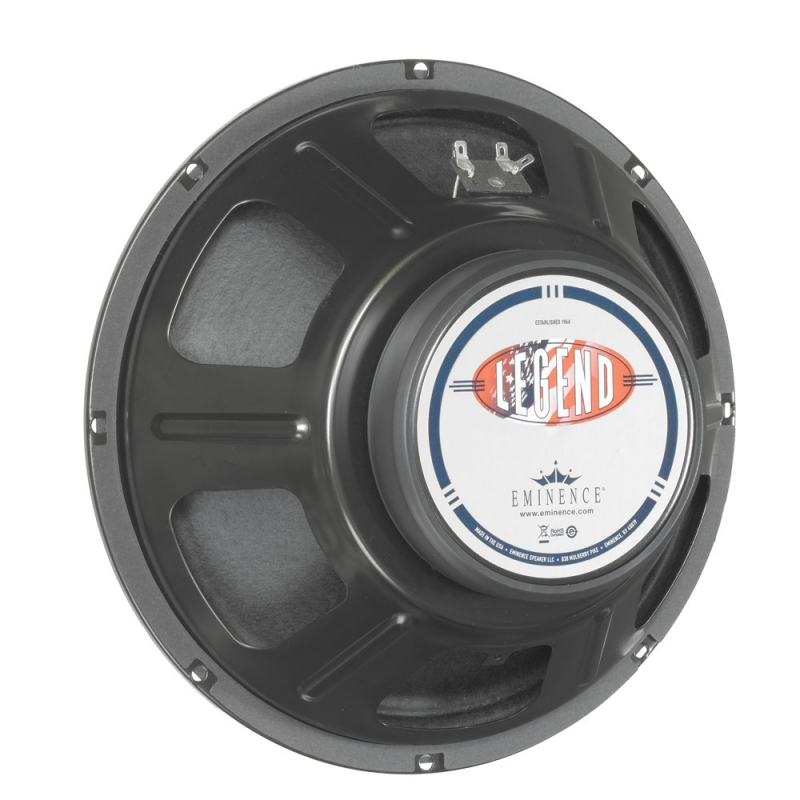

Kvalitní kytarový reproduktor 12".
Zabarvení zvuku: British, warm.
High power, British flavored guitar tone. Warm, rich low-end, with smooth mids, and strong highs. Lots of headroom before break-up.
Coloration : Warm, smooth and fat American tone, with a hint of smooth British break-up
Genre : Country, Blues, Jazz
SPECIFICATION
- Nominal Basket Diameter 12", 304.8 mm
- Nominal Impedance 8 ohms
- Power Rating Watts 150 W / Music Program N/A
- Resonance 100 Hz
- Usable Frequency Range 80 Hz - 4.2 kHz
- Sensitivity 98.8
- Magnet Weight 38 oz.
- Gap Height 0.312", 7.92 mm
- Voice Coil Diameter 2", 50.8 mm
THIELE & Small Parameters
- Resonant Frequency (fs) 100 Hz
- DC Resistance (Re) 6.95
- Coil Inductance (Le) 0.69 mH
- Mechanical Q (Qms) 15.51
- Electromagnetic Q (Qes) 0.95
- Total Q (Qts) 0.89
- Compliance Equivalent Volume (Vas) 31.2 liters / 1.1 cu. ft.
- Peak Diaphragm Displacement Volume (Vd) 41 cc
- Mechanical Compliance of Suspension (Cms) 0.09 mm/N
- BL Product (BL) 11.6 T-M
- Diaphragm Mass inc. Airload (Mms) 29 grams
- Efficiency Bandwidth Product (EBP) 105
- Maximum Linear Excursion (Xmax) 0.8 mm
- Surface Area of Cone (Sd) 506.7 cm²
- Maximum Mechanical Limit (Xlim) N/A
MOUNTING Information
- Recommended Enclosure Volume
Sealed N/A
Vented Acceptable
- Overall Diameter 12.03", 305.5 mm
- Baffle HoleDiameter 10.95", 278.1 mm
- Front Sealing Gasket fitted as standard
- Rear Sealing Gasket fitted as standard
- Mounting Holes Diameter 0.25", 6.4 mm
- Mounting Holes B.C.D. 11.59", 294.3 mm
- Depth 4.5", 114 mm
MATERIALS of Construction
- Copper voice coil
- Polyimide former
- Ferrite magnet
- Non-vented core
- Pressed steel basket
- Paper Cone
- Paper cone edge
- Zurette dust cap
